BEVEL, QUALITY & TEMPER
CHOOSING A BEVEL
Today there are many more styles of bevels available. We still offer a standard Helmold
bevel of 60°, but our new 2 pt. shaved edge rule with a more acute angle of 53° or 42° (available in center face and center face long bevel style) requires less pressure when diecutting.
We offer the following styles:
bevel of 60°, but our new 2 pt. shaved edge rule with a more acute angle of 53° or 42° (available in center face and center face long bevel style) requires less pressure when diecutting.
We offer the following styles:
- CFB - Center Face Bevel
which is located in the center of the rule thickness
- CFLB - Center Face Long Bevel
which is used to help minimize press pressure when cutting thick material
- FB - Flush Bevel
- MBB - Minimum Back Bevel
- SFB - Side Face Bevel
which is located close to one side
- SFLB - Side Face Long Bevel
also used to minimize press pressure when cutting thick material, this bevel creates a cleaner cut with less crush on the finished material.
| CFB | CFLB | FB | MBB | SFB | SFLB | |
| Ground (GE) | ||||||
| Shaved (SE) | ||||||
| 60° | ||||||
| 53° | ||||||
| 42° | ||||||
| Distance (d) | .002 | .004 | .007 |
CHOOSING A QUALITY
Helmold is committed to meeting or exceeding all IADD specifications. Every foot of rule is continuously laser-checked for the highest accuracy: during processing, and then again during packaging. Because our quality control process is so advanced, we are able to offer an “Ultra-Precise” grade shaved rule with a height tolerance of ± 0.0008".
Quantity in feet (.937 Height)
| Point | Thickness | Feet/Box | Weight/Box | Feet/Coil |
| 1 pt | .014 | 500 | 22.9 lb | 600 |
| 1 1/2 pt | .021 | 335 | 22.9 lb | 400 |
| 2 pt | .028 | 250 | 22.9 lb | 300 |
| 3 pt | .042 | 165 | 22.9 lb | 200 |
| 4 pt | .056 | 125 | 23.5 lb | 150 |
| 6 pt | .084 | 85 | 23.5 lb | N.A. |
Quantity in feet (.937 Height)
Click to enlarge.
CHOOSING A TEMPER

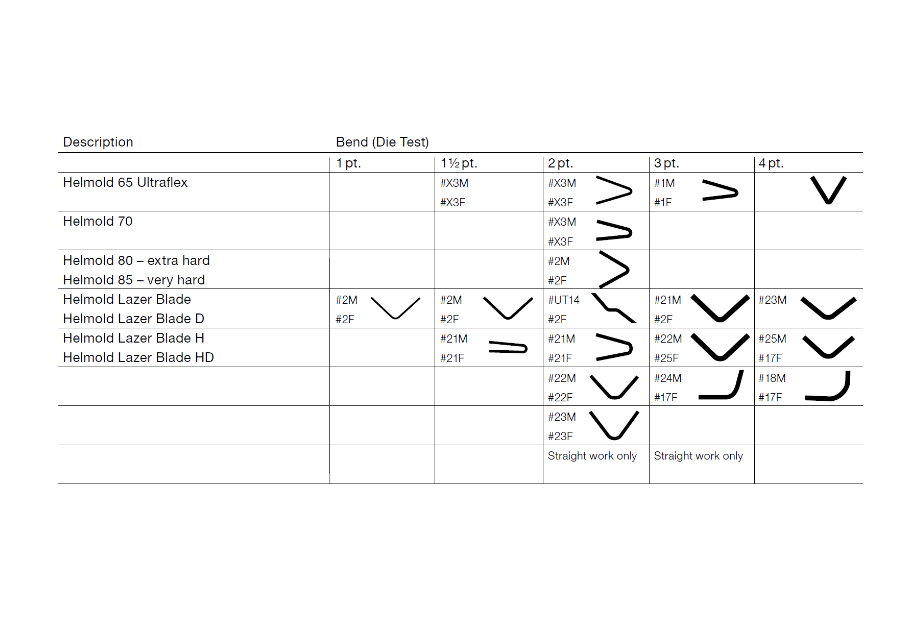

According to thickness and hardness there are different possibilities in achieving the required bending radius. For a complete overview see the data sheet with the possible angels and radius of all Helmold steel qualities.
About Helmold
Helmold is part of the voestalpine Precision Strip Group, the world market leader in flatbed steel rules. On the one hand it benefits from the strip steel production know-how of the group, and on the other hand, from the finest raw material available. Therefore Helmold is the specialist for high customer requirements when it comes to unique packaging applications.
